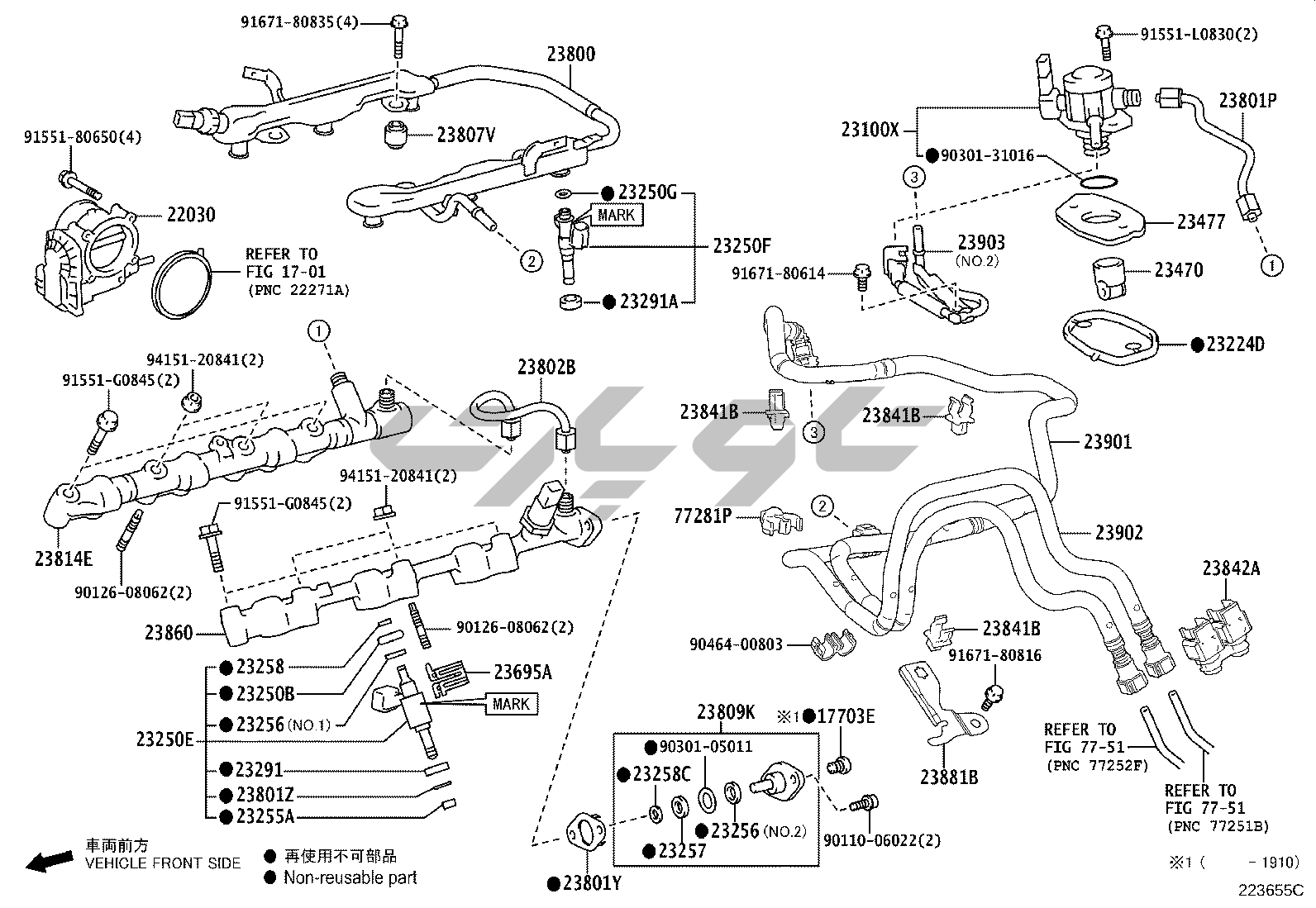

1770347010 کلاهک مجموعه گرد و غبار CAP SUB-ASSY, DUST 17703E 7GRFKS..GRH30#,32# 02.2019 - 10.2019 2203031090 دریچه گاز برقی- با موتور BODY ASSY THROTTLE W/THROTTLE POSITION SENSOR 22030 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2310131090 پمپ سوخت (سمت موتور) PUMP ASSY FUEL (ENGINE ROOM SIDE) 23100X 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2322431020 واشر واسطه پمپ سوخت GASKET, FUEL PUMP SPACER 23224D 7GRFKS..GRH300..GCC;7GRFKS..GRH303..LHD..J;7GRFKS..GRH300..4D..GEN;7GRFKS..GRH303. .RHD..GEN;7GRFKS..GRH301,304,32#..GCC,GEN 02.2019 - 11.2021 2322431021 واشر واسطه پمپ سوخت GASKET, FUEL PUMP SPACER 23224D 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 12.2021 - ... 9030105013 اورينگ انژکتور سوخت RING, O(FOR FUEL INJECTOR) 23250B 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 232093117007 انژکتور کامل (DIRECT) INJECTOR ASSY, FUEL(FOR DIRECT) 23250E 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC MARK 7 02.2019 - ... 232093117006 انژکتور کامل (DIRECT) INJECTOR ASSY, FUEL(FOR DIRECT) 23250E 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC MARK 6 02.2019 - ... 232093117008 انژکتور کامل (DIRECT) INJECTOR ASSY, FUEL(FOR DIRECT) 23250E 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC MARK 8 02.2019 - ... 2320939435 انژکتور کامل (PORT) INJECTOR ASSY, FUEL(FOR PORT) 23250F 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC MARK=23250-31230 02.2020 - ... 2320939325 انژکتور کامل (PORT) INJECTOR ASSY, FUEL(FOR PORT) 23250F 7GRFKS..GRH30#,32# MARK=23250-31140 02.2019 - 02.2020 90301A0036 اورینگ انژکتور سوخت RING, O, NO.2(FOR FUEL INJECTOR) 23250G 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC (L) 02.2020 - ... 9030107037 اورینگ انژکتور سوخت RING, O, NO.2(FOR FUEL INJECTOR) 23250G 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC (J) 02.2019 - ... 2325531030 سیل (واشر) انژکتور SEAL, FUEL INJECTOR 23255A 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2325631010 رینگ انژکتور - RING, FUEL INJECTOR BACK-UP, NO.1 23256 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC NO.2 02.2019 - ... 2325625010 رینگ انژکتور - RING, FUEL INJECTOR BACK-UP, NO.1 23256 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC NO.1 02.2019 - ... 2325747010 رینگ انژکتور - شماره 2 RING, FUEL INJECTOR BACK-UP, NO.2 23257 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2325831020 واشر لوله بنزین RING, FUEL INJECTOR BACK-UP, NO.3 23258 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2325831010 رینگ سوخت انژکتور شماره 3 درپوش RING FUEL INJECTOR BACK-UP NO.3(FOR PIPE PLUG) 23258C 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2329131030 عایق لرزه گیر سوزن انژکتور INSULATOR, INJECTOR VIBRATION 23291 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2329128020 عایق لرزه گیر سوزن انژکتور INSULATOR, INJECTOR VIBRATION 23291A 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2347025010 غلطت پمپ سوخت LIFTER ASSY, FUEL PUMP 23470 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2347731020 راهنمای غلطت پمپ سوخت GUIDE, FUEL PUMP LIFTER 23477 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2369531020 بست نگهدارنده انژکتور CLAMP, NOZZLE HOLDER 23695A 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2380031051 لوله سوخت مجموعه PIPE ASSY, FUEL DELIVERY W/SENSOR 23800 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2380131210 لوله بنزین شماره 1 PIPE SUB-ASSY, FUEL, NO.1 23801P 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2389347010 واشر GASKET 23801Y 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 9052014004 رینگ سوخت RING, SNAP(FOR FUEL PIPE) 23801Z 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2380231160 لوله بنزین - شماره 2 PIPE SUB-ASSY, FUEL, NO.2 23802B 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 9056108023 واشر ریل سوخت رسان SPACER, NO.1(FOR DELIVERY PIPE) 23807V 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2380947010 سوخت درپوش مجموعه PLUG SUB-ASSY, FUEL PIPE 23809K 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2380731110 لوله سوخت راست PIPE, FUEL DELIVERY, RH 23814E 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2384170030 گیره لوله سوخت - شماره 1 CLAMP, FUEL PIPE, NO.1(FOR EFI) 23841B 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2384238010 گیره لوله سوخت - شماره 2 CLAMP, FUEL PIPE, NO.2(FOR EFI) 23842A 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2386031030 لوله سوخت مجموعه چپ PIPE ASSY FUEL DELIVERY W/SENSOR LH 23860 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2388131070 پایه شیلنگ بنزین BRACKET, FUEL HOSE 23881B 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..LHD..6F..D;7GRFKS..GRH304,322..D,H,P,Q;7GRF KS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN;7GRFKS..GRH300,320..(HPSOB ,PSOB,SHP,SP)..GCC 02.2019 - ... 2390131430 شیلنگ سوخت TUBE SUB-ASSY, FUEL 23901 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2390231170 شیلنگ سوخت TUBE SUB-ASSY, FUEL 23902 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 2390131380 لوله سوخت مجموعه شماره 3 TUBE SUB-ASSY, FUEL, NO.3 23903 7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN ;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7 GRFKS..GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 7728126050 سوخت گیره CLAMP, FUEL HOSE 77281P GRH303..LHD..J;GRH301..RHD..6FC..N;GRH300,301..RHD..D..GEN;GRH301,320..LHD..SG..6F ..D;GRH304,321,322..(D,H,P,Q)..(GCC,GEN);GRH300,320..(HPSOB,PSOB,SHP,SP)..GCC 02.2019 - ... 9011006022 - - 9011006022 - - 9012608062 - - 9012608062 - - 9030105011 - - 9030105011 - - 9030131016 - - 9030131016 - - 9046400803 - - 9046400803 - - 9155180650 - - 9155180650 - - 91551G0845 - - 91551G0845 - - 91551L0830 - - 91551L0830 - - 9167180614 - - 9167180614 - - 9167180816 - - 9167180816 - - 9167180835 - - 9167180835 - - 9415120841 - - 9415120841 - -
